Elevator

An elevator is a type of vertical transportation that transports people or goods between floors of a building or any other arrangement.

Elevators are usually powered by electric motor that drives the traction cables and the counterweight systems like a hoist, or pump hydraulic fluid to raise a cylindrical piston like a jack.

In agronomy and manufacturing, an elevator is a type of device used to lift materials in a constant stream.

Marconi provides its clients with a wide range and diversification of elevator and escalator solutions in India such as –

Our Elevators combine various features to cater the need of the client.

  • Eco-Friendly
  • Efficient
  • Superior Quality

Elevator

Technical Details (Hydraulic)

Capacity
(Kg)
Shaft
size
W D
Car
Size
W D H
Entrance
W H
Machine
Room
D H
Pit
Depth
Over
Head
2500
3600 6000
2600 5266 2300
2300 2100
4000 4000
1500
4000
3000
4000 6000
3000 5266 2300
2300 2100
4000 4000
1500
4000

Technical Details (Traction)

Capacity
(Kg)
Shaft size
W D
Car Size
W D H
Entrance
W H
Machine
Room
D H
Pit
Depth
Over
Head
2500
3500 6000
2600 5266 2300
2300 2100
4000 6000
1500
5000
3000
3900 6000
3000 5266 2300
2300 2100
4000 6000
1500
5000

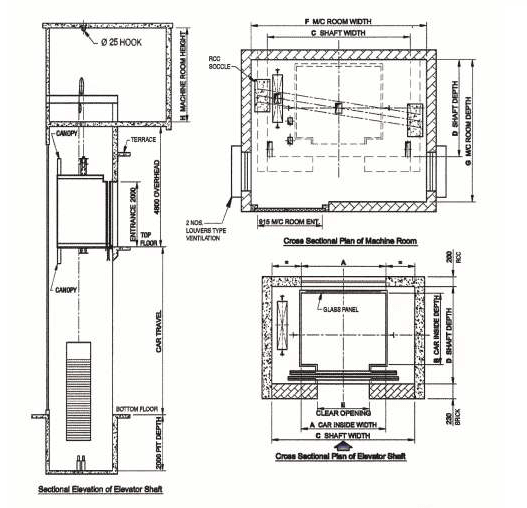

Observation Elevator (One glass panel on rear side)

Standard Dimensions

Load
Capacity
(Persons)
Weight
(Kgs)
Car size
(A) (B)
Shaft Size
(C) (C-1) (D) (D-1)
Entrance
(E )
Machine Room
(F) (G) (H)
8 544
1100 1400
2100 1300 1300 1950
800
4000 4000 2900
10 680
1350 1400
2400 1550 1300 1950
800
4000 4000 2900
13 844
1350 1700
2100 1300 1600 2250
900
4000 4000 2900
16 1088
1600 1700
2600 1800 1600 2250
1000
4000 4000 2900
20 1360
1600 2000
2800 2000 1900 2250
1000
4000 4000 2900

All Dimensions are in milimeters
