Dumbwaiter

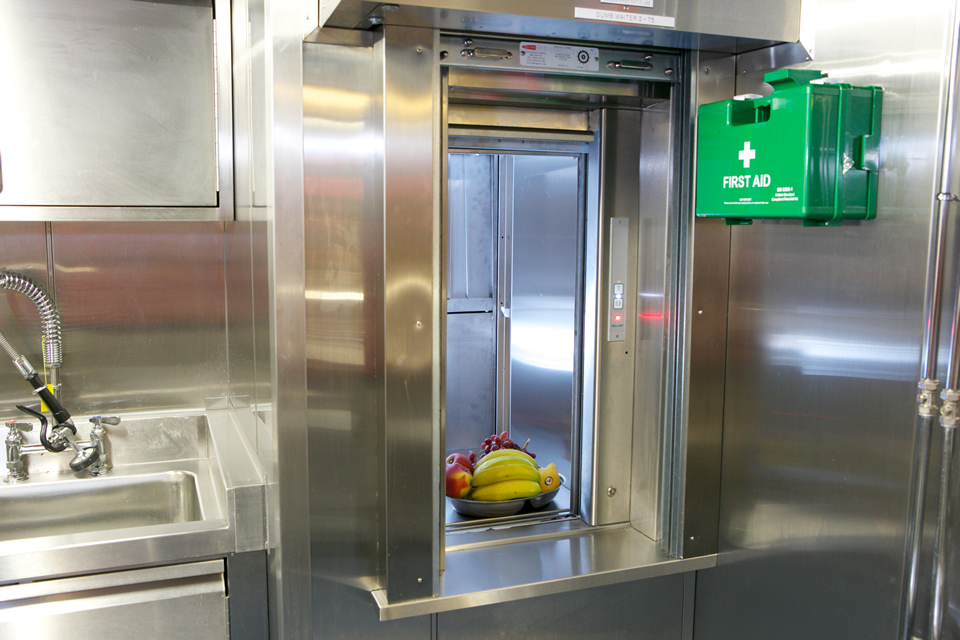

  • A dumbwaiter is a small freight elevator (or lift) intended to carry objects rather than people & built for applications such as restaurants, hospital, or anything you can think of.
  • Dumbwaiters found within modern structures, including commercial, public and private buildings, are often connected between multiple floors.

Layout Plan

Technical Details

Load
(Kg)
Car Dim
(A) (B) (H)
Shaft Dim
(C) (D)
Entrance
(E)
M/C Room Dims
(K) (L) (H)
Over
Head 		Pit
Depth
100
700 700 800
1200 900
700
700 700 1200
3300
750
150
800 800 900
1300 1000
800
800 800 1200
3300
750
200
900 900 1000
1400 1100
900
900 900 1200
3300
750
250
1000 1000 1200
1500 1200
1000
1000 1000 1200
3300
750

Notes:

  • For service/dumb waiter lift normally car door not provided
  • Landing door is vertical bi parting
  • Shaft Depth is given for car without door whereas with car door adds 150mm.
